- Introduction
- Features
- Specifications
. SMT and integrative design
. Rugged cast aluminum enclosure
---anti-static,anti-interference,easy-to-install
. 192×64 lattice LCD display
. User interface language:English
. Simultancous display of multtiparameters
. Automatic or manual temperature compensation
. Long distance transmission capability of measuring signal from sensor to analyzer
. Combination PH electrode
---faster response
. Two analog outputs and two alarm relay outputs
. CAN bus communication
. Large datalog and history curve trackable
. Universal power supply for worldwide operation(100~240)V
|
Display |
29%×64 lattice LCD |
|
Measurement Range |
pH: (0.00-14.00)pH; mV: (-1000 to 1000)mV Temperature: (0.0-99.9) oC; ATC: (0.1 to 60.0)oC |
|
Resolution (min) |
pH value: 0.01pH; mV: 0.1mV; Temperature: 0.1oC |
|
Accuracy |
pH value: ±0.02pH; Temperature: ±0.5 oC |
|
Response Time (T90) |
90% within 90 sec |
|
Analog Output |
Two (0-10)mA, (0-20)mA or (4-20)mA isolated outputs, max load 800W(Correspond to pH and temperature) |
|
Output Accuracy |
±1%F.S |
|
Alarm Output |
Two alarm relays, programmable |
|
Communication |
CAN Bus (option) |
|
Sample Condition |
Temperature: (5 to 60)oC Flow: :≤6L/H Solid contents in sample: ≤5um (no gel and grease) |
|
Ambient Temperature |
(5 to 45)oC |
|
Ambient Humidity |
≤90%RH (no condensation) |
|
Storage Temperature |
(-25 to 55 )oC (above 0oC for pH electrode) |
|
Overall Dimension (mm) |
158(L) × 158(W) × 170(D) |
|
Cutout Dimensions (mm) |
140 × 140 |
|
Power Supply |
(100-240)VAC, (45-65)Hz |
|
Power Consumption |
≤8W |
|
Insulation Strength |
Power to ground 1500V, no flying arc in 1 min |
|
Net Weight |
4kg |
|
Warranty |
18 months(from date of acceptance) |
|

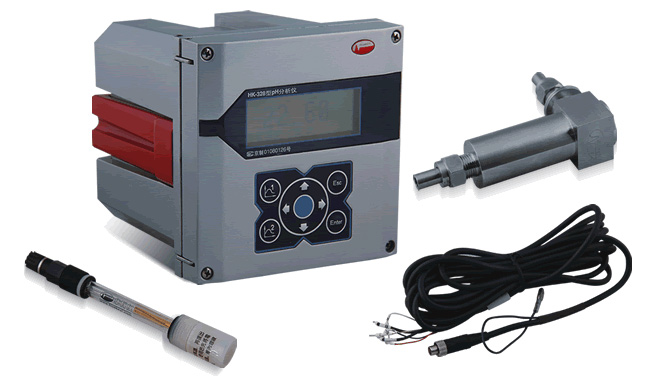

Analyzer |
1piece |
|
Battery Charger |
1piece |
|
Electrode and flow cell |
1set |
|
Eletrolyte |
1bottle |
|
Membrane |
2pcs |
|
Sample pipe |
2pcs |
|
Maintenance kit |
1set |
|
Cable |
1piece |
|
Communication software |
1piece |
|
Power wire |
1piece |
